Bearing Removal and Installation Instructions

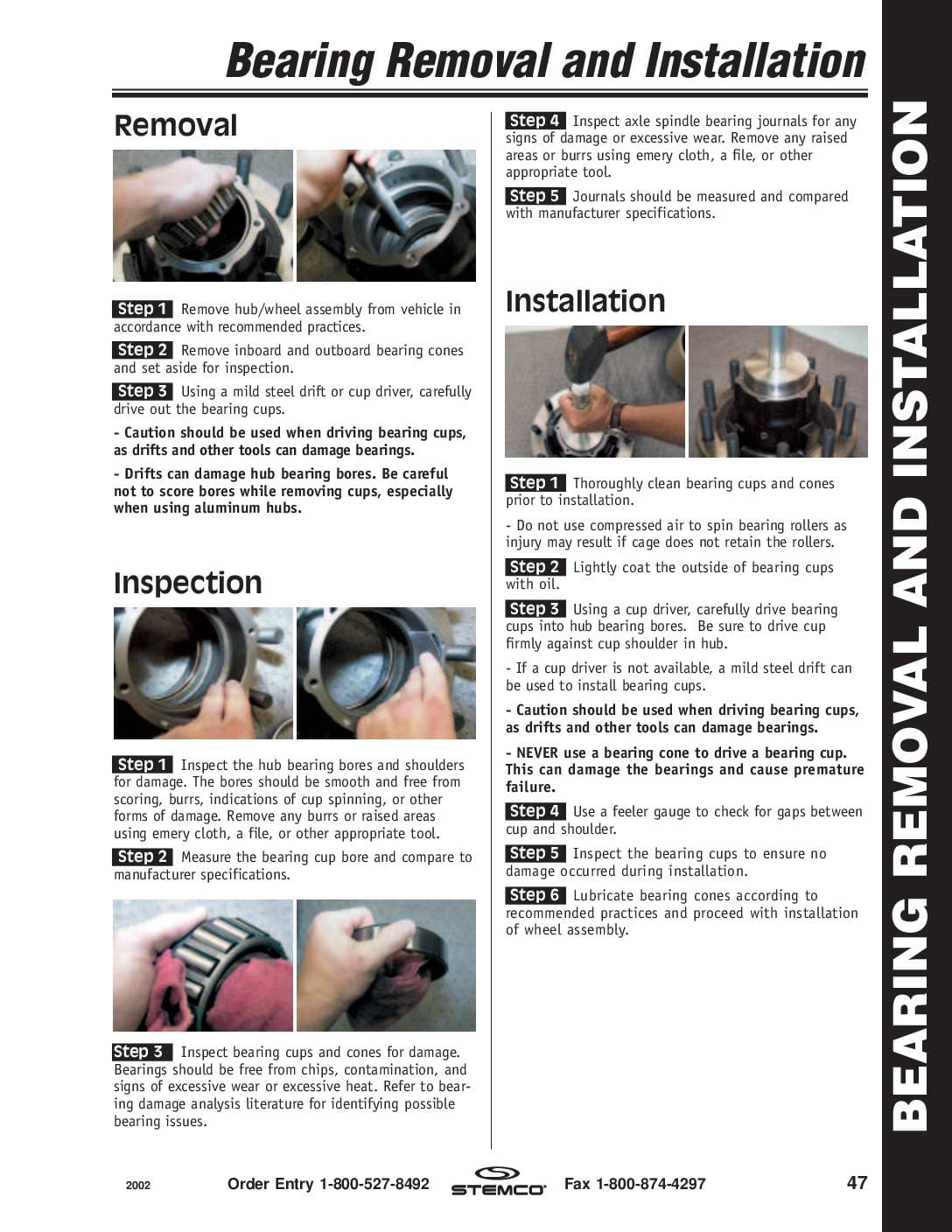

Bearing Removal and Installation provides a high-level service procedure for removing bearing cups and cones, inspecting hub bearing bores, bearing components, and axle spindle journals, and reinstalling bearing cups before wheel assembly installation. It emphasizes careful tool use, inspection for scoring, burrs, contamination, excessive wear, or heat damage, and proper checks after installation to confirm the cups are seated without gaps.

Key Points

  • Covers removal of the hub/wheel assembly, bearing cones, and bearing cups.
  • Includes inspection guidance for hub bores, shoulders, cups, cones, and axle spindle journals.
  • Notes that bearing cup bores and journals should be measured against manufacturer specifications.
  • Warns against damaging hub bores or bearings when using drifts or other tools.
  • States that a bearing cone should never be used to drive a bearing cup.
  • Warns not to spin bearing rollers with compressed air.
