Hub Seal Interchange Chart

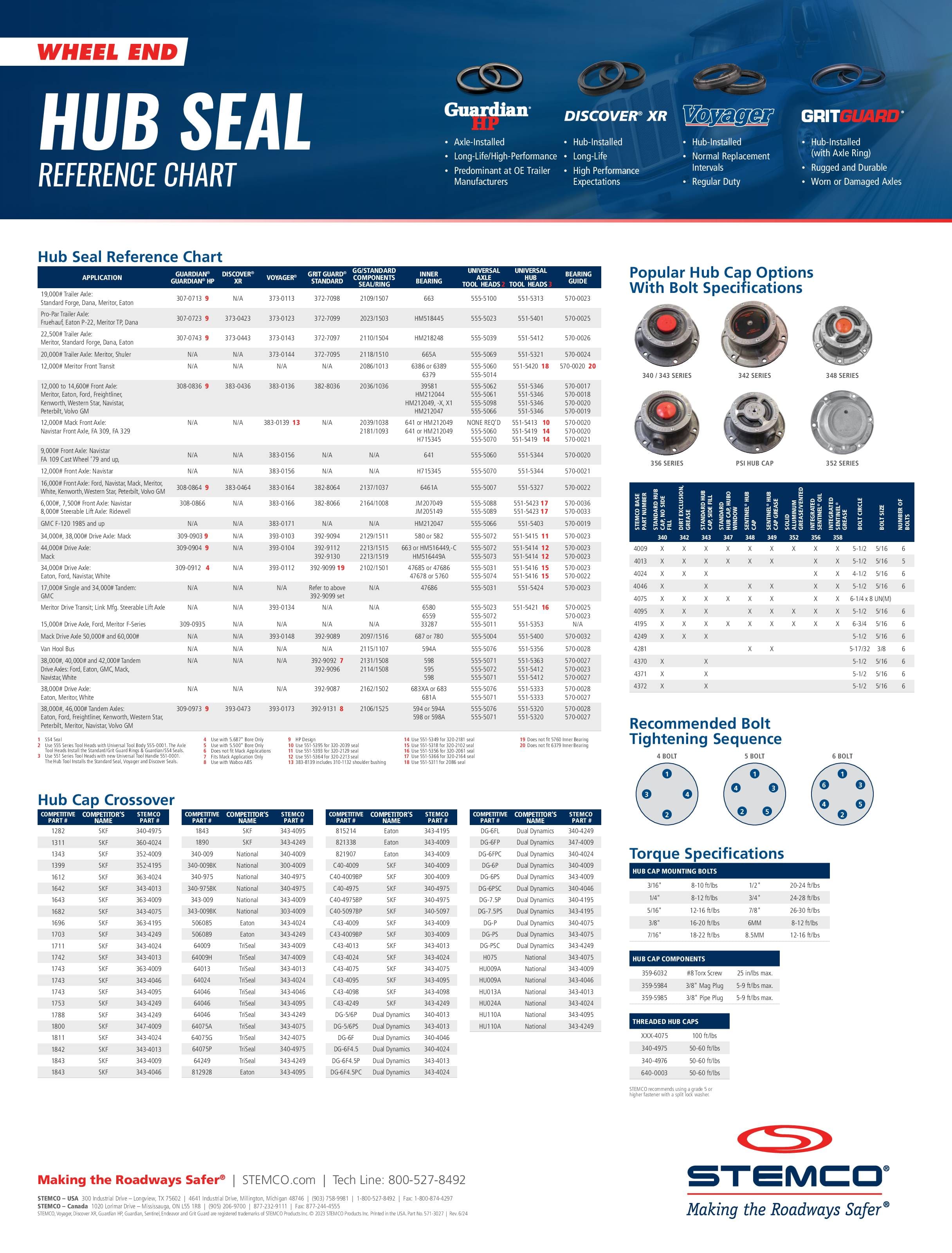

Hub Seal Reference Chart provides a wheel-end lookup reference for matching STEMCO seal families, seal and ring components, inner bearings, tool heads, bearing guides, and hub cap options to common trailer, front axle, drive axle, transit, lift axle, and bus applications. It includes application rows by axle type and manufacturer, plus bolt specifications, recommended bolt tightening sequence, tool-use notes, hub cap option references, and a hub cap crossover from competitive part numbers to STEMCO part numbers.

Key Points

  • Cross-references GuardianĀ®, GuardianĀ® HP, DiscoverĀ® XR, VoyagerĀ®, Grit GuardĀ®, and Standard seal options by application.
  • Lists related seal/ring components, inner bearing references, Universal Axle Tool heads, Universal Hub Tool heads, and bearing guides.
  • Includes hub cap options with bolt circle, bolt size, and number of bolts.
  • Provides notes for tool compatibility, bore-specific applications, ABS-related usage, and application limitations.
  • Includes a competitive hub cap crossover chart for SKF, National, Eaton, TriSeal, and Dual Dynamics part numbers.
